D-Sub, D-Shaped Connectors(62066)
| Image | Product Number | Pricing(USD) | Quantity | ECAD | Quantity Available | Weight(Kg) | Mfr | Series | Package | Product Status | Operating Temperature | Mounting Type | Features | Base Product Number | Color | Termination | Ingress Protection | DataSheet | RoHS Status | Moisture Sensitivity Level (MSL) | REACH Status | Other Names | ECCN | HTSUS | Standard Package | Connector Type | Number of Rows | Contact Finish | Contact Finish Thickness | Current Rating (Amps) | Contact Material | Material Flammability Rating | Contact Type | Number of Positions | Voltage Rating | Flange Feature | Dielectric Material | Shell Material, Finish | Connector Style | Wire Gauge | Contact Form | Shell Size, Connector Layout | Backset Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
630-7W2-240-3T5 | 5.7896 |  |
3742 | 0.00000000 | EDAC Inc. | 630-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock, Mounting Brackets | 630-7W2 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-630-7W2-240-3T5 | EAR99 | 8536.69.4040 | 2,000 | Receptacle, Female Sockets | 2 | Gold | Flash | 5A, 30A | Copper Alloy | UL94 V-0 | Signal and Power | 7 (5 + 2 Power) | 125V | Mating Side (4-40) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 2 (DA, A) - 7W2 | 0.370" (9.40mm) | |
 |
629-2W2-250-1T5 | 4.9837 | |
8933 | 0.00000000 | EDAC Inc. | 629-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock, Grounding Indents, Mounting Brackets | 629-2W2 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629-2W2-250-1T5 | EAR99 | 8536.69.4040 | 2,000 | Plug, Male Pins | 1 | Gold | Flash | 10A | Copper Alloy | UL94 V-0 | Power | 2 (Power) | 125V | Mating Side (4-40) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 1 (DE, E) - 2V2, 2W2, 2W2C, 2WK2 | 0.520" (13.20mm) | |
 |
629-21W4240-2N2 | 12.1806 | |
9350 | 0.00000000 | EDAC Inc. | 629-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | - | 629-21W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629-21W4240-2N2 | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 2 | Gold | Flash | 5A, 20A | Copper Alloy | UL94 V-0 | Signal and Power | 21 (17 + 4 Power) | 125V | Housing/Shell (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 4 (DC, C) - 21WA4 | 0.370" (9.40mm) | |
 |
627-015-621-259 | 2.9583 | |
9971 | 0.00000000 | EDAC Inc. | 627 (Metal) | Tray | Active | -55°C ~ 85°C | Through Hole | Grounding Indents, Shielded | 627-015 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-627-015-621-259 | EAR99 | 8536.69.4040 | 1,000 | Plug, Male Pins | 2 | Gold | 30.0µin (0.76µm) | 3A per Contact | Brass | UL94 V-0 | Signal | 15 | - | Board Side (4-40) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub | - | - | 2 (DA, A) | - | |
 |
B57-014-267I222 | - | |
9758 | 0.00000000 | EDAC Inc. | * | Bulk | Active | - | ROHS3 Compliant | 1 (Unlimited) | 151-B57-014-267I222 | EAR99 | 8536.69.4040 | 1 | |||||||||||||||||||||||||||
 |

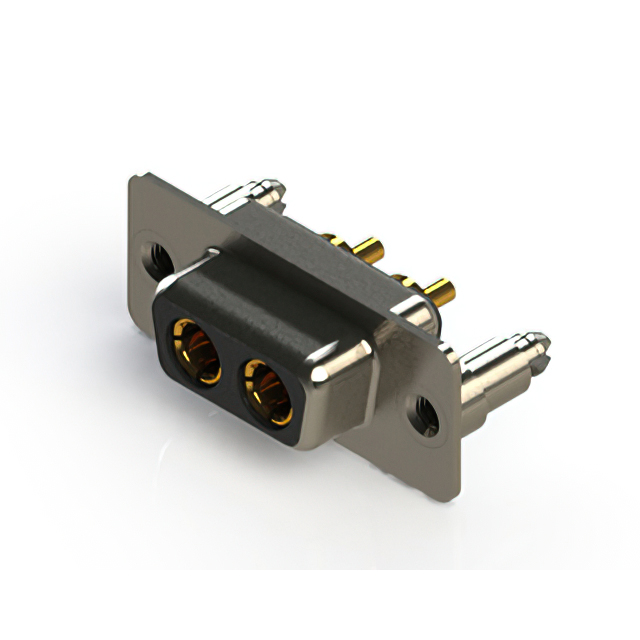

628-2W2-224-1TD | 5.3540 | |
1847 | 0.00000000 | EDAC Inc. | 628-C | Tray | Active | -55°C ~ 125°C | Through Hole | Board Lock, Shielded | 628-2W2 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628-2W2-224-1TD | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Sockets | 1 | Gold | Flash | 10A | Copper Alloy | UL94 V-0 | Signal and Power | 2 (Power) | 125V | Board Side (M3) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 1 (DE, E) - 2V2, 2W2, 2W2C, 2WK2 | - | |
 |
629-8W8-640-1T5 | 24.8026 | |
7068 | 0.00000000 | EDAC Inc. | 629-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock, Grounding Indents, Mounting Brackets | 629-8W8 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629-8W8-640-1T5 | EAR99 | 8536.69.4040 | 2,000 | Plug, Male Pins | 1 | Gold | 30.0µin (0.76µm) | 10A | Copper Alloy | UL94 V-0 | Power | 8 (Power) | 125V | Mating Side (4-40) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 4 (DC, C) - 8W8 | 0.520" (13.20mm) | |
 |
627-13W3224-7N5 | 9.7996 | |
6104 | 0.00000000 | EDAC Inc. | 627-C | Tray | Active | -55°C ~ 125°C | Through Hole | Board Lock, Grounding Indents, Shielded | 627-13W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-627-13W3224-7N5 | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 2 | Gold | Flash | - | Copper Alloy | UL94 V-0 | Coax and Signal | 13 (10 + 3 Coax) | 125V | Board Side (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 3 (DB, B) - 13C3, 13W3 | - | |
 |
628-009-322-241 | 1.1817 | |
1940 | 0.00000000 | EDAC Inc. | 628 (Metal) | Tray | Active | -55°C ~ 85°C | Free Hanging (In-Line) | Shielded | 628-009 | Black | Solder Cup | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628-009-322-241 | EAR99 | 8536.69.4040 | 1,000 | Receptacle, Female Sockets | 2 | Gold | 15.0µin (0.38µm) | 3A per Contact | Brass | UL94 V-0 | Signal and Power | 9 | - | Board Side (4-40) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub | - | - | 1 (DE, E) | - | |
 |
627-21W1224-7TC | 9.2106 | |
6808 | 0.00000000 | EDAC Inc. | 627-C | Tray | Active | -55°C ~ 125°C | Panel Mount, Through Hole | Grounding Indents, Shielded | 627-21W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-627-21W1224-7TC | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 2 | Gold | Flash | - | Copper Alloy | UL94 V-0 | Coax and Signal | 21 (20 + 1 Coax) | 125V | Board Side (M3); Mating Side (M3) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 3 (DB, B) - 21W1 | - | |
 |
B57-150-566I702 | - | |
3231 | 0.00000000 | EDAC Inc. | * | Bulk | Active | - | ROHS3 Compliant | 1 (Unlimited) | 151-B57-150-566I702 | EAR99 | 8536.69.4040 | 1 | |||||||||||||||||||||||||||
 |
B57-036-562I322 | - | |
7800 | 0.00000000 | EDAC Inc. | * | Bulk | Active | - | ROHS3 Compliant | 1 (Unlimited) | 151-B57-036-562I322 | EAR99 | 8536.69.4040 | 1 | |||||||||||||||||||||||||||
 |
637-026-230-062 | 3.9248 | |
4753 | 0.00000000 | EDAC Inc. | 637 | Tray | Active | -55°C ~ 125°C | Panel Mount, Through Hole | Grounding Indents, Shielded | 637-026 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-637-026-230-062 | EAR99 | 8536.69.4040 | 50 | Plug, Male Pins | 3 | Gold | Flash | 3A per Contact | Brass | UL94 V-0 | Signal | 26 | - | Housing/Shell (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, High Density | - | - | 2 (DA, A) High Density | - | |
 |
627-8W8-224-3TA | 12.3522 | |
9491 | 0.00000000 | EDAC Inc. | 627-C | Tray | Active | -55°C ~ 125°C | Panel Mount | Grounding Indents, Shielded | 627-8W8 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-627-8W8-224-3TA | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 1 | Gold | Flash | 30A | Copper Alloy | UL94 V-0 | Power | 8 (Power) | 125V | Board Side (M3) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 4 (DC, C) - 8W8 | - | |
 |
626-015-362-530 | 5.4810 | |
8121 | 0.00000000 | EDAC Inc. | 626 | Tray | Active | -55°C ~ 125°C | Board Edge, Through Hole, Right Angle | Board Lock, Mounting Brackets, Shielded | 626-015 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-626-015-362-530 | EAR99 | 8536.69.4040 | 50 | Receptacle, Female Sockets | 2 | Gold | 15.0µin (0.38µm) | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 15 | - | Mating Side (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub | - | - | 2 (DA, A) | 0.584" (14.84mm) | ||
 |
630-21W4640-7NA | 29.7482 | |
4441 | 0.00000000 | EDAC Inc. | 630-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | - | 630-21W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-630-21W4640-7NA | EAR99 | 8536.69.4040 | 250 | Receptacle, Female Sockets | 2 | Gold | 30.0µin (0.76µm) | - | Copper Alloy | UL94 V-0 | Coax and Signal | 21 (17 + 4 Coax) | 125V | Board Side (M3) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 4 (DC, C) - 21WA4 | 0.370" (9.40mm) | |
 |
627-3W3-224-1NB | 5.8913 | |
8328 | 0.00000000 | EDAC Inc. | 627-C | Tray | Active | -55°C ~ 125°C | Panel Mount | Grounding Indents, Shielded | 627-3W3 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-627-3W3-224-1NB | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 1 | Gold | Flash | 10A | Copper Alloy | UL94 V-0 | Power | 3 (Power) | 125V | Board Side (M3) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 2 (DA, A) - 3W3 | - | |
 |
627-8W8-224-2NE | 12.1220 | |
9460 | 0.00000000 | EDAC Inc. | 627-C | Tray | Active | -55°C ~ 125°C | Panel Mount, Through Hole | Board Lock, Grounding Indents, Shielded | 627-8W8 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-627-8W8-224-2NE | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 1 | Gold | Flash | 20A | Copper Alloy | UL94 V-0 | Power | 8 (Power) | 125V | Mating Side (M3) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 4 (DC, C) - 8W8 | - | |
 |
628-13W6224-3T5 | 11.7271 | |
3416 | 0.00000000 | EDAC Inc. | 628-C | Tray | Active | -55°C ~ 125°C | Through Hole | Board Lock, Shielded | 628-13W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628-13W6224-3T5 | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Sockets | 2 | Gold | 30.0µin (0.76µm) | 5A, 30A | Copper Alloy | UL94 V-0 | Signal and Power | 13 (7 + 6 Power) | 125V | Board Side (4-40) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 4 (DC, C) - 13W6 | - | |
 |
629-5W5-250-4TE | 7.3134 | |
6647 | 0.00000000 | EDAC Inc. | 629-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Grounding Indents, Mounting Brackets | 629-5W5 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629-5W5-250-4TE | EAR99 | 8536.69.4040 | 2,000 | Plug, Male Pins | 1 | Gold | Flash | 40A | Copper Alloy | UL94 V-0 | Power | 5 (Power) | 125V | Mating Side (M3) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 3 (DB, B) - 5W5 | 0.520" (13.20mm) | |
 |
B57-024-262I423 | - | |
4001 | 0.00000000 | EDAC Inc. | * | Bulk | Active | - | ROHS3 Compliant | 1 (Unlimited) | 151-B57-024-262I423 | EAR99 | 8536.69.4040 | 1 | |||||||||||||||||||||||||||
 |
B57-150-567I502 | - | |
3281 | 0.00000000 | EDAC Inc. | * | Bulk | Active | - | ROHS3 Compliant | 1 (Unlimited) | 151-B57-150-567I502 | EAR99 | 8536.69.4040 | 1 | |||||||||||||||||||||||||||
 |
630W7W2-640-1N2 | 18.9799 | |
6938 | 0.00000000 | EDAC Inc. | 630-WC | Tray | Active | -55°C ~ 125°C | Panel Mount, Through Hole, Right Angle | Shielded | 630W7W | Black | Solder | IP67 - Dust Tight, Waterproof | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-630W7W2-640-1N2 | EAR99 | 8536.69.4040 | 200 | Receptacle, Female Sockets | 2 | Gold | 30.0µin (0.76µm) | 5A, 10A | Copper Alloy | UL94 V-0 | Signal and Power | 7 (5 + 2 Power) | 125V | Housing/Shell (4-40) | Polybutylene Terephthalate (PBT), Glass Filled | Steel, Nickel Plated | D-Sub, Combo | - | - | 2 (DA, A) - 7W2 | - | |
|
627-025-281-276 | 3.2219 | |
3696 | 0.00000000 | EDAC Inc. | 627 (Metal) | Tray | Active | -55°C ~ 85°C | Through Hole | Board Lock, Grounding Indents, Shielded | 627-025 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-627-025-281-276 | EAR99 | 8536.69.4040 | 1,000 | Plug, Male Pins | 2 | Gold | Flash | 3A per Contact | Brass | UL94 V-0 | Signal | 25 | - | Board Side (4-40) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub | - | - | 3 (DB, B) | - | |
 |
629W3WK3640-3N3 | 20.5690 | |
2107 | 0.00000000 | EDAC Inc. | 629-WC | Tray | Active | -55°C ~ 125°C | Panel Mount, Through Hole, Right Angle | Board Lock, Grounding Indents, Mounting Brackets, Shielded | 629W3W | Black | Solder | IP67 - Dust Tight, Waterproof | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629W3WK3640-3N3 | EAR99 | 8536.69.4040 | 200 | Plug, Female Sockets and Male Pins | 1 | Gold | 30.0µin (0.76µm) | 30A | Copper Alloy | UL94 V-0 | Power | 3 (Power) | 125V | Housing/Shell (4-40) | Polybutylene Terephthalate (PBT), Glass Filled | Steel, Nickel Plated | D-Sub, Combo | - | - | 2 (DA, A) - 3WK3 | - | |
 |
629-3WK3650-4ND | 13.9703 | |
7962 | 0.00000000 | EDAC Inc. | 629-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock, Grounding Indents, Mounting Brackets | 629-3WK | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629-3WK3650-4ND | EAR99 | 8536.69.4040 | 250 | Plug, Female Sockets and Male Pins | 1 | Gold | 30.0µin (0.76µm) | 40A | Copper Alloy | UL94 V-0 | Power | 3 (Power) | 125V | Mating Side (M3) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 2 (DA, A) - 3WK3 | 0.520" (13.20mm) | |
 |
B57-136-562I102 | - | |
8276 | 0.00000000 | EDAC Inc. | * | Bulk | Active | - | ROHS3 Compliant | 1 (Unlimited) | 151-B57-136-562I102 | EAR99 | 8536.69.4040 | 1 | |||||||||||||||||||||||||||
 |
630-13W3640-2T5 | 16.6488 | |
1649 | 0.00000000 | EDAC Inc. | 630-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock, Mounting Brackets | 630-13W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-630-13W3640-2T5 | EAR99 | 8536.69.4040 | 2,000 | Receptacle, Female Sockets | 2 | Gold | 30.0µin (0.76µm) | 5A, 20A | Copper Alloy | UL94 V-0 | Signal and Power | 13 (10 + 3 Power) | 125V | Mating Side (4-40) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 3 (DB, B) - 13C3, 13W3 | 0.370" (9.40mm) | |
 |
637-078-230-048 | 9.1344 | |
2238 | 0.00000000 | EDAC Inc. | 637 | - | Active | -55°C ~ 85°C | Panel Mount, Through Hole | Grounding Indents, Shielded | 637-078 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 25 | Plug, Male Pins | 4 | Gold | Flash | 3A per Contact | Brass | UL94 V-0 | Signal | 78 | - | Mating Side (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, High Density | - | - | 5 (DD, D) High Density | - | ||
 |
627W13W3124-1N5 | 14.6743 | |
9433 | 0.00000000 | EDAC Inc. | 627-WC | Tray | Active | -25°C ~ 85°C | Panel Mount, Through Hole | Board Lock, Grounding Indents, Shielded | 627W13W | Black | Solder | IP67 - Dust Tight, Waterproof | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-627W13W3124-1N5 | EAR99 | 8536.69.4040 | 200 | Plug, Male Pins | 2 | Gold | 5.00µin (0.127µm) | 5A, 10A | Copper Alloy | UL94 V-0 | Signal and Power | 13 (10 + 3 Power) | 125V | Board Side (4-40) | Polybutylene Terephthalate (PBT), Glass Filled | Steel, Nickel Plated | D-Sub, Combo | - | - | 3 (DB, B) - 13C3, 13W3 | - |
